FRONT LOADERS ZC, ZL & ZQ

ZETOR TRACTORS a.s. in cooperation with ÅLÖ AB launches front loaders under the name Zetor System. If you’re looking for a compatible and robust front loader, your best option is the ZETOR SYSTEM offer. The offer includes compact ZC loaders, basic ZL loaders or professional ZQ loaders, which enable you to choose a wide variety of accessories - for the most demanding users.

Zetor
High-
performance
design
Quick and simple
to connect
and disconnect
Quick attach tool carrier
Implement indicator
Simple servicing saves you time

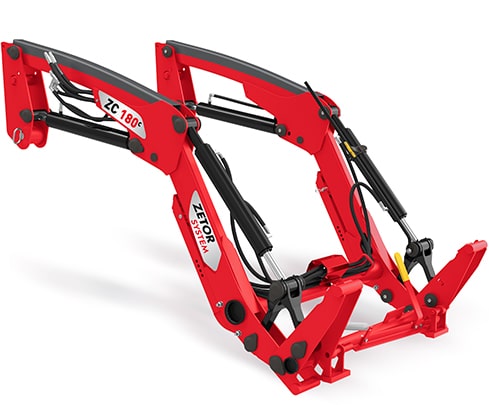

ZC Series

Word-leading design and uncompromising performance of ZETOR SYSTEM front loaders is now available for your compact tractor. New ZC series of front loaders offers unbeatable lifting power, convenient functions and many clever details. Professional design solution of the ZC series guarantees the highest performance during the whole working day.

  • 01

    Compact and reliable loader beam design

    All the essential parts of the hydraulics are securely protected inside the loader beam, which minimises the risk of injury and damage. Of course, this design also enhances the view.

  • 02

    Quick and simple to connect and disconnect

    You do not need any tools to connect and disconnect your ZC Compact loader.

  • 03

    Strong pins and smart locking

    All the pins are zinc-coated, and can also be lubricated. Note also the pin locking system unique, which prevents the pins from rotating.

  • 04

    Cross tube in uniquely low position

    The extra low cross tube on the ZC Compact loader means that you always have a full view of the implement. Driving is also optimised from a safety point of view because the front lights are not hidden or covered.

  • 05

    The smooth, integrated support legs

    make the ZC Compact loader extremely easy to connect and disconnect.

Basic parameters of ZC series loaders without parralel linkage

MODEL ZC180c ZC180c MSL
Lift height(m)
Lift height at pivot pin 2.81 2.81
Lift height under work attachment 2.62 2.62
Operating angles(°)
Max. rollback angle 44 45
Max. dump angle 51 51
Lift force at 500 mm from the pivot PIN (kg)
At max. lift height 720 1210
At a height of 1.5 m 990 1430
Maximum rollback force (kg)
500 mm from the pivot pin/td> 1400 1700
Weight (kg)
Front loader (boom) 280 330
Compatibility
Self-levelling - YES
UTILIX HT UTILIX HT
Download detailed information about front loaders
Zetor
Strong
subframe
& bearing box
Quick
and simple
to connect
and disconnect
Grease nipples
Self-levelling
Simplified
implement indicator
Convenient automatic
implement locking

ZL series

The design of the loader beam means that the ZL loader matches today’s modern tractors in a unique manner. The fact that it has the lowest knee placement on the market also means that it has superb side visibility. No tools are needed to disconnect from your ZL loader. In addition, the shaped moulds give ZL loaders excellent torsional rigidity and strength. The solid, smooth and integrated support legs further simplify connection and disconnection.

  • 01

    Reliability and security

    ZL loader s jam-packed with features that enhance its reliability. One perfect example of this is the cross bar that is positioned across the back of the tool carrier to prevent any damage to the implement locking mechanism - saving time and money!

  • 02

    Quick and simple to connect and disconnect

    No tools are needed to disconnect from your ZL loader. The solid, smooth and integrated support legs further simplify connection and disconnection.

  • 03

    Smart practical design

    The design of the loader beam means that the ZL loader matches today’s modern tractors in a unique manner. The fact that it has the lowest knee placement on the market also means that it has superb side visibility.

  • 04

    Drive as hard as you want, as smoothly as possible

    SoftDrive load-reducing suspension function minimises strain on the loader and subframe,as well as on the driver and tractor. You activate the SoftDrive with a manual stopcock.

Basic parameters of ZL series loaders without parralel linkage

MODEL ZL16 ZL26 ZL36 ZL46 ZL56
Lift height(m)
Lift height at pivot pin 2.9 3.1 3.4 3.7 3.9
Lift height under work attachment 2.7 2.9 3.2 3.5 3.7
Operating angles (°)
Max. follback angle 46 42 44 42 43
Max. dump angle 47 50 50 49 46
Lift force at 800 mm from the pivot PIN (kg)
At max. lift heightspan> 960 1220 1520 1590 1680
At a height of 1.5 m 1170 1400 1560 1710 1890
Maximum rollback force (kg)
800 mm from the pivot pin 1500 1500 1890 2280 2740
Weight (kg)
Front loader (boom) 340 360 390 420 440
Compatibility
HORTUS CL HORTUS HS MAJOR CL MAJOR HS MAJOR CL MAJOR HS Proxima CL Proxima GP Proxima HS Proxima CL Proxima GP Proxima HS Forterra CL Forterra HSX Forterra CL Forterra HSX Forterra HD
Download detailed information about front loaders
Zetor
Strong subframe
& bearing box
Lock&go
Cylinder
Grease Nipples
Self-levelling
Simplified
implement indicator
Cross-brace
Automatic
implement lock

ZQ series

Designed to deliver the best possible productivity and user benefits over along periodi of time. The innovative range of professional front loaders, called ZQ, provides farmers with extended durability, better visibility from the cabin, greater lift height, better system rigidity, wider selection of accessories, such as lights or a smart display, showing the weight of the load and the position of the loader.

  • 01

    Superb visibility

    No pipes that block visibility, low placement of cross tubes. The ZQ loader enables optimum visibility in all situations, including in the dark,as the tractor lights are not blocked.

  • 02

    Maximum lifting power

    Solidly dimensioned loader arms and pins and optimally dimensioned cylinders are factors which significantly contribute to ZQ’s great lifting capacity.

  • 03

    Loader control system (LCS)

    Unmatched control, direct response and fast motion reaction thanks to flow optimization for every task, independently of load weight.

  • 04

    Cross -brace

    All joints where the loader receives the greatest load have been reinforced to be even stronger.One example is the boom arm front joint and the cross-brace.

  • 05

    Heavy-duty

    Dimensioned cylinders, subframe system, bearing box, etc. Some examples of details that contribute to ZQ’s recognised high level of durability and long service life.

  • 06

    Attention to detail

    Reinforcement plates are placed strategically to give additional strength and durability to all loaders.

Q-COMPANION

the Q-COMPANION is a device that enables you to weigh your load, monitor the precise attachment position, carry out maintaenance based on actual time spent using the loader and much more.

Find out more
Zetor

Basic parameters of ZQ series loaders without parralel linkage

MODEL ZQ3S ZQ4S ZQ5S
Lift height(m)
Lift height at pivot pin 3.55 3.79 4.06
Lift height under work attachment 3.25 3.49 3.76
Operating angles (°)
Max. follback angle 48 48 48
Max. dump angle 58 58 57
Lift force at 800 mm from the pivot PIN (kg)
At max. lift height 1550 1920 1980
At a height of 1.5 m 1570 1940 2100
Maximum rollback force (kg)
800 mm from the pivot pin 2390 3360 3370
Weight (kg)
Front loader (boom) 520 575 620
Compatibility
Proxima CL Proxima GP Proxima HS Proxima GP Proxima HS Forterra CL Forterra HSX Forterra CL Forterra HSX Forterra HD
Download detailed information about front loaders

You can get original Zetor System front loaders via the company’s dedicated
