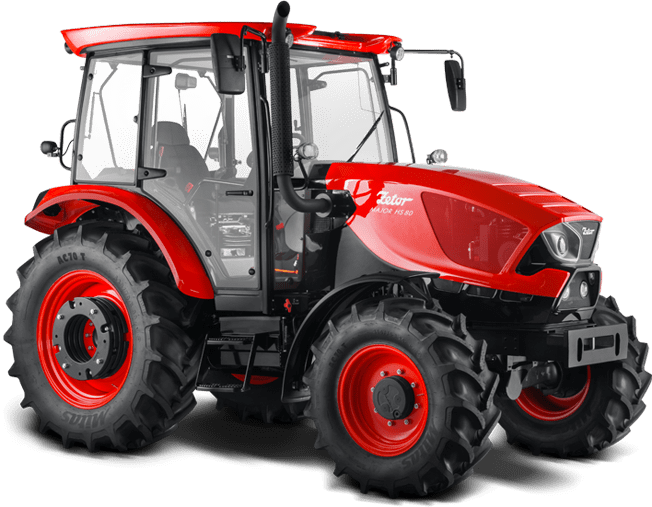

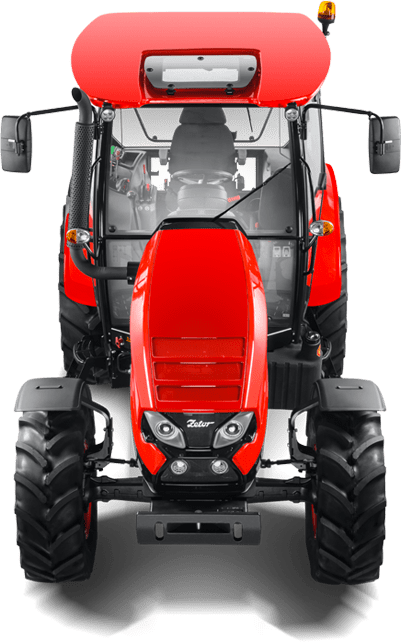

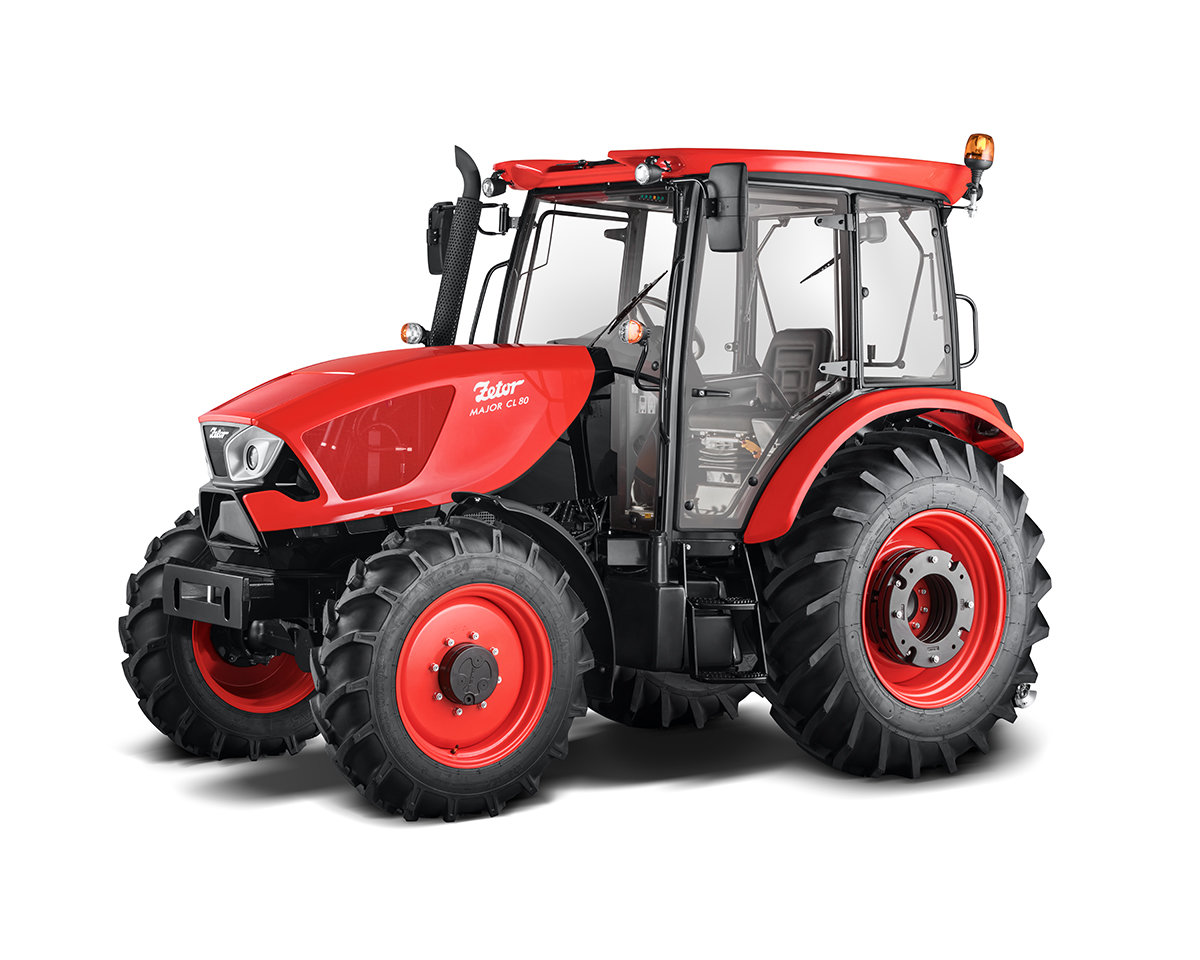

Zetor Major



A reliable tractor of a medium-capacity class with excellent price-to-power ratio.

Leaflet Zetor Major (PDF) Print




Technical parameters

MODEL 80
ENGINE
Type Stage III A Zetor 1105
Homologated Power 2000/25 ISO (kW/HP) 55,6 / 75,6
Rated Speed rpm (1/min.) 2 200
No. of Cylinders 4
No. of Valves 8
Aspiration turbocharged
Bore / Stroke (mm) 105 / 120
Displacement (ccm) 4 156
Max Torque / Torque Reserve
(Nm / % according to ECE R24 03)
315,8 / 34,7
CLUTCH
Type 2 plate, dry, mechanical control
Diameter (mm) 280 engine / 280 PTO
Lining  (engine / PTO) cerametalic / organical
TRANSMISSION
Type mechanical
Shifting fully synchronized
No. of Gears 12 / 12
Speed (kph) 30
PTO
Type dependent/Independent
Rear PTO Rotations (rpm) 540 / 1 000
HYDRAULICS
Type mechanical with positional, power and mixed regulation
Point Hitch category II
Lift Capacity at the end of
Lower Links (kN)
26
Operating Pressure (MPa) 18
Hydraulic Pump Capacity (l/min) 50
Hydraulics Quick Couplings 1 pair + 1
Hitch System swinging drawbar, quick adjustable hitch
CABIN
Seat seat SC 80 COBO
Steering Wheel adjustable
OTHER SPECIFICATIONS
Driving system 2WD / 4WD
Steering  hydrostatic
Travelling Brakes wet, disc, mechanical control
Parking Brakes mechanical control
Trailer Brakes optional
DIMENSIONS
Weight 4WD (kg) 3 090
Length (overall) 4 212
Width over Rear Mudguards (mm) 1 860
Height to Exhaust Mouth (mm) 2 656
Wheelbase (mm) 2 210
Front Wheels 2WD / 4WD 7,5–15 / 11,2 –24
Rear Wheels 2WD / 4WD 16,9 – 28 / 16,9 – 30
OTHER OPTIONAL EQUIPMENT
  • connecting shaft cover
  • compressor
  • flash beacon
  • Rear PTO 540/540E
  • additional quick couplings - 4 + 1
  • air trailer brakes - 1 hose
  • air-conditioning

Specification

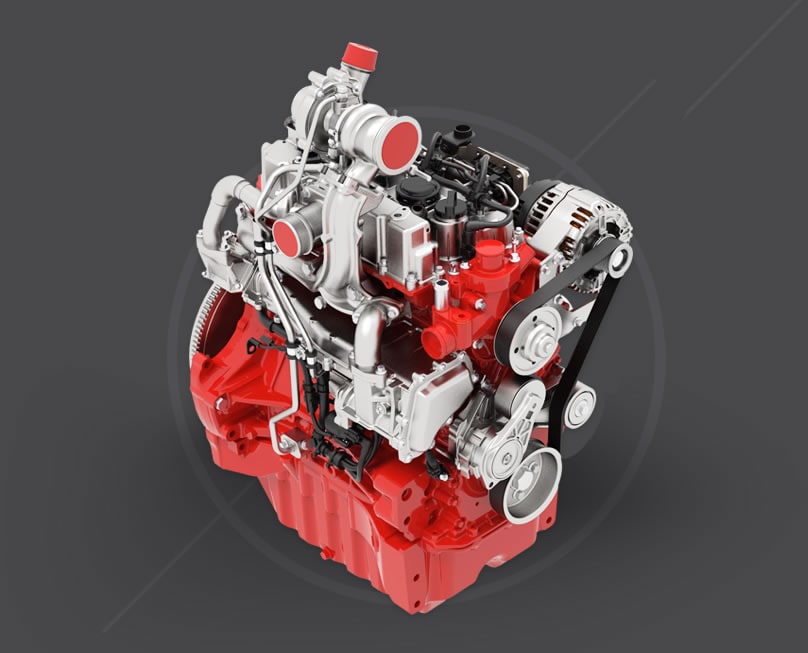

ENGINE
Designed without electronics and additional fuel admixtures, the factory engines of ZETOR dominate over competition through simple service and high level of reliability. They feature a good deal of torque margin (over 34 %), which reduces the need of advance gear shifting. Engine output remains constant within a wide range of rpm speeds.

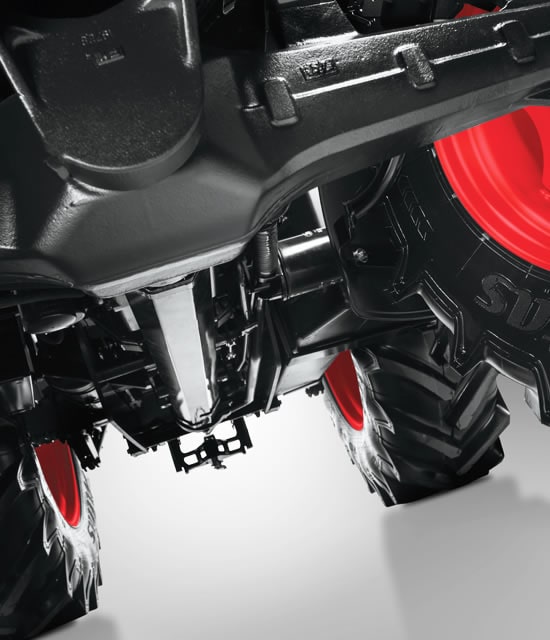

GEARBOX
The tractor is equipped with a fully synchronized four-gear transmission system with three reduced gears and a reverse gear. Number of gears is 12 + 12.

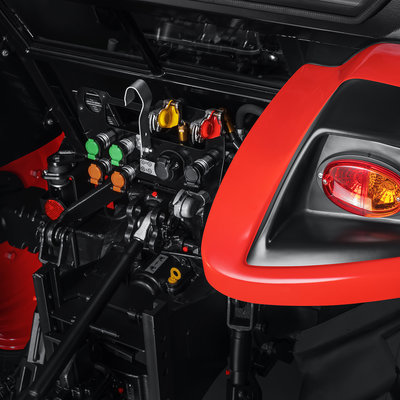

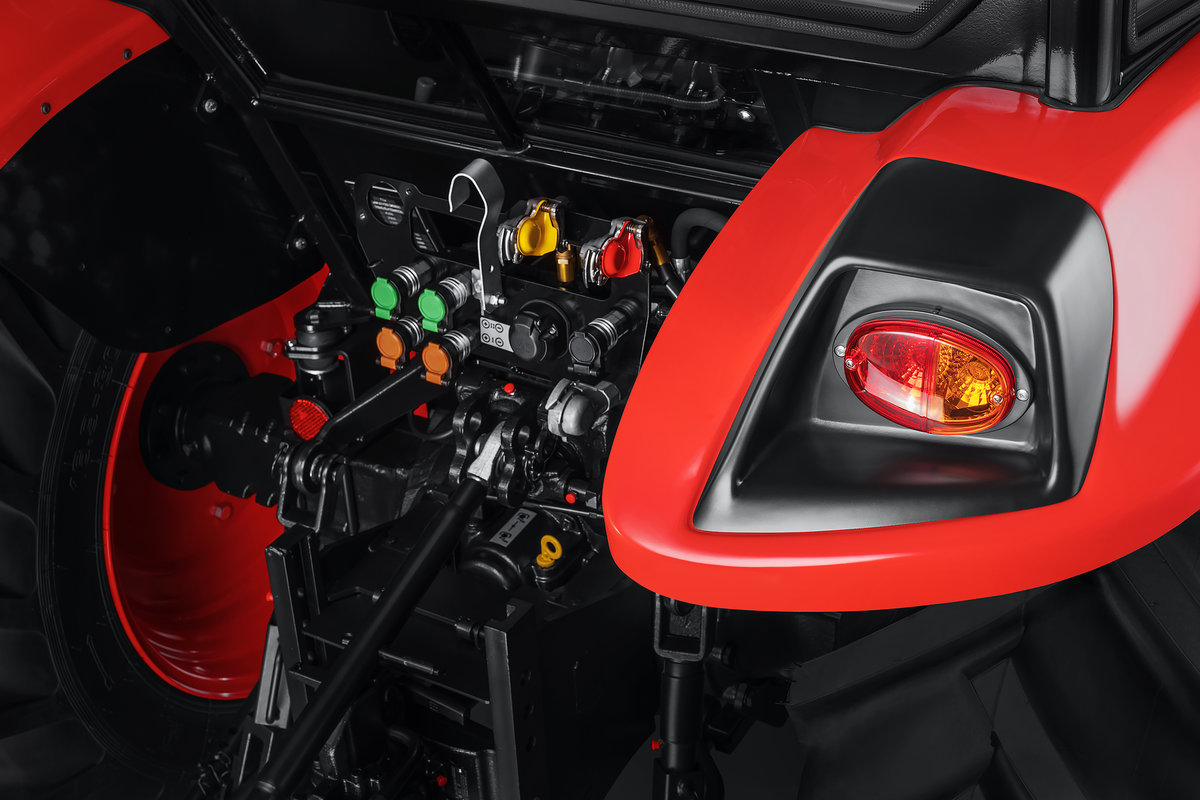

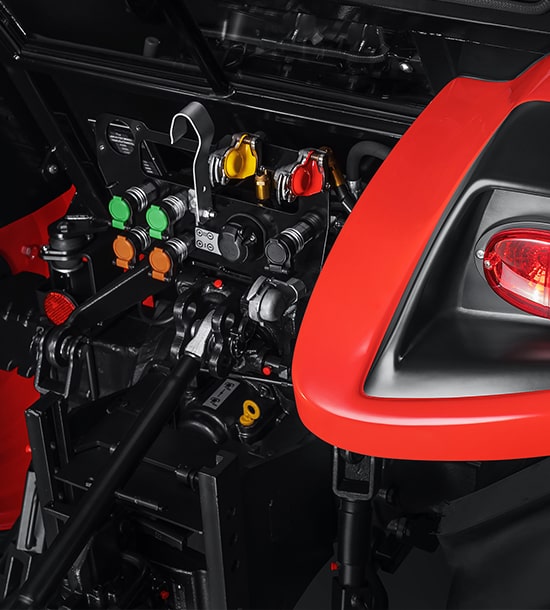

HYDRAULICS
The Major Model makes use of hydraulics with mechanical control. It features not only high lifting force, but also a smooth regulation of startups, including the hydraulic lock function while tools are being transported. The tractor is fitted with a two-sectional or single-sectional extra distributor with reverse quick-action clutch for wastes from the rotary hydraulic motor.

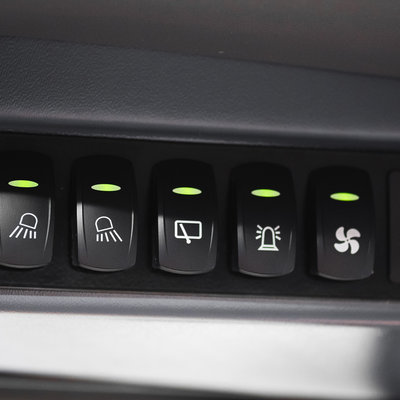

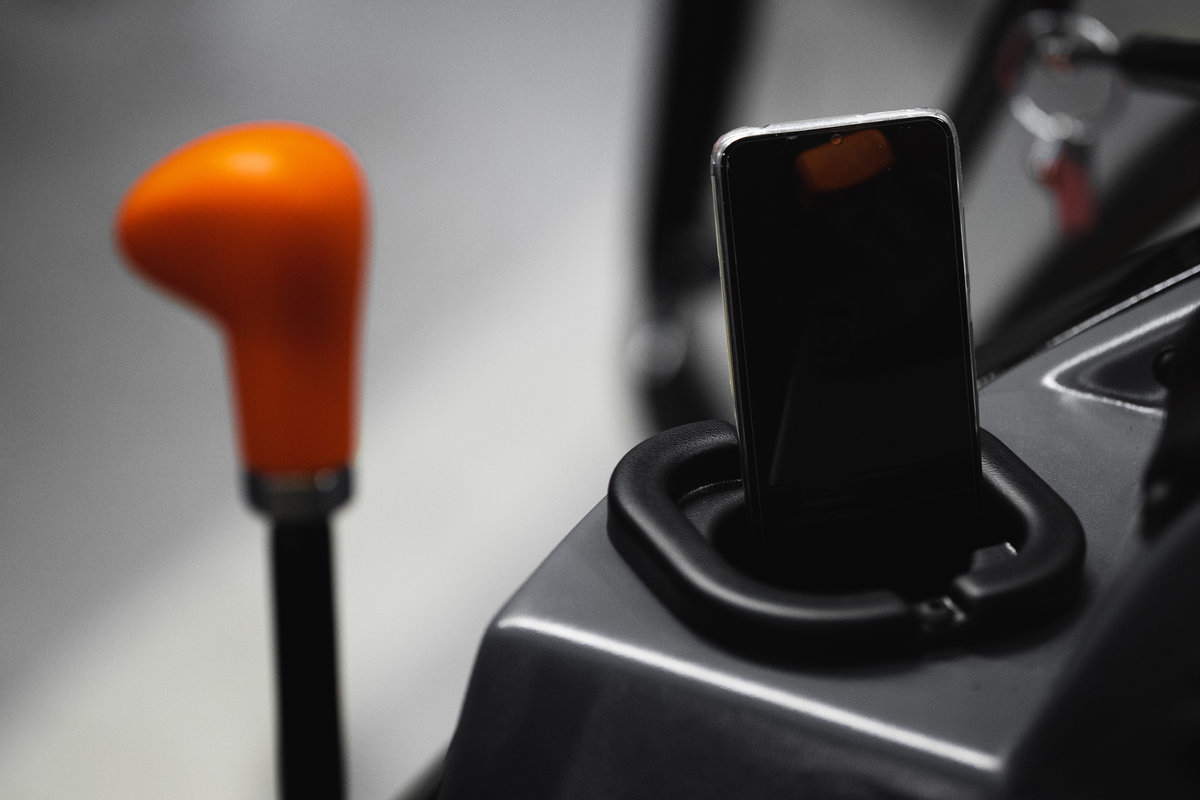

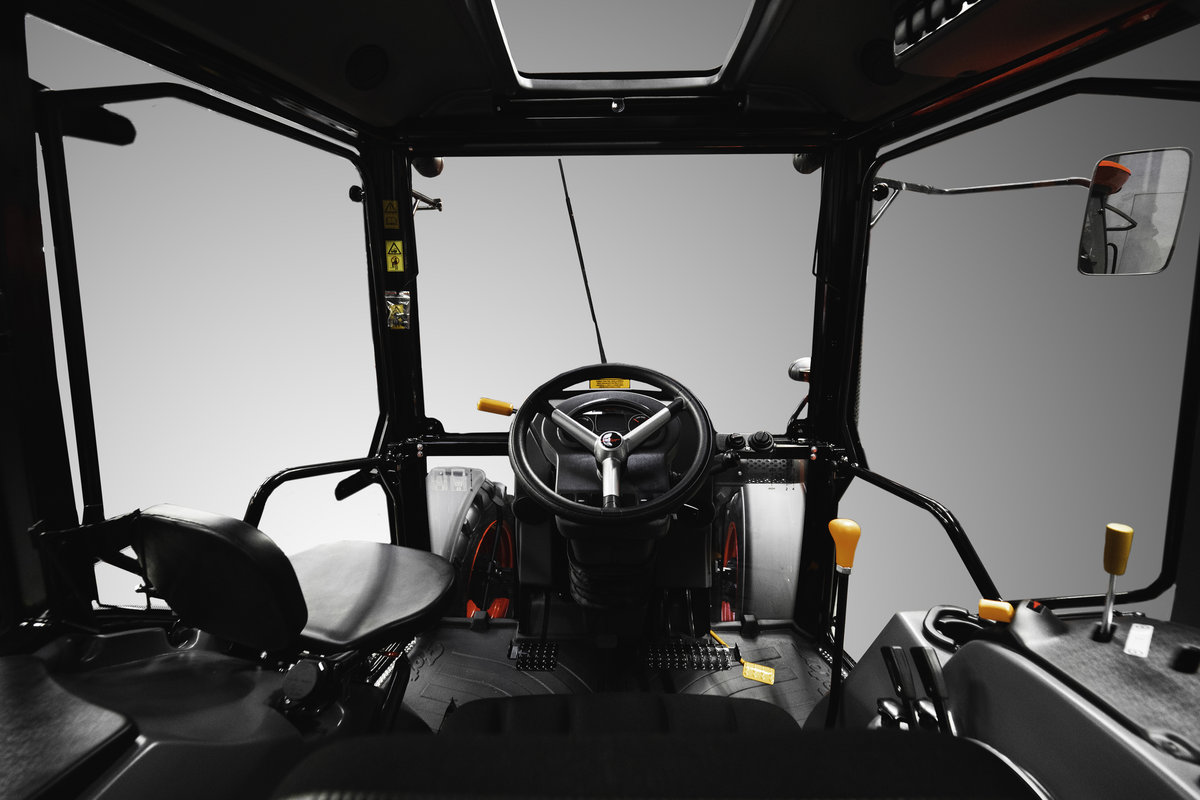

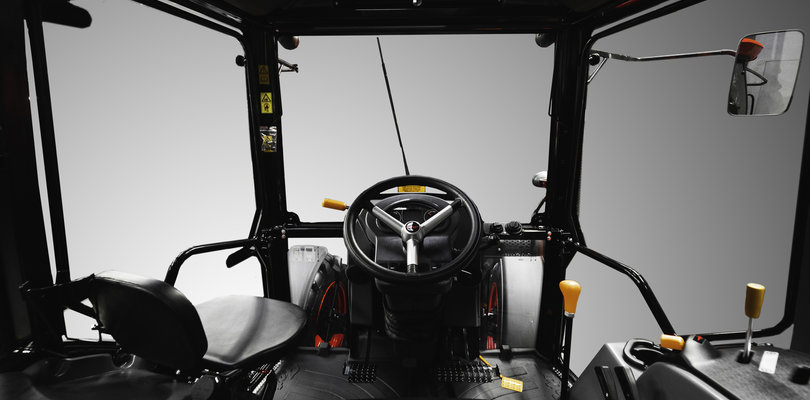

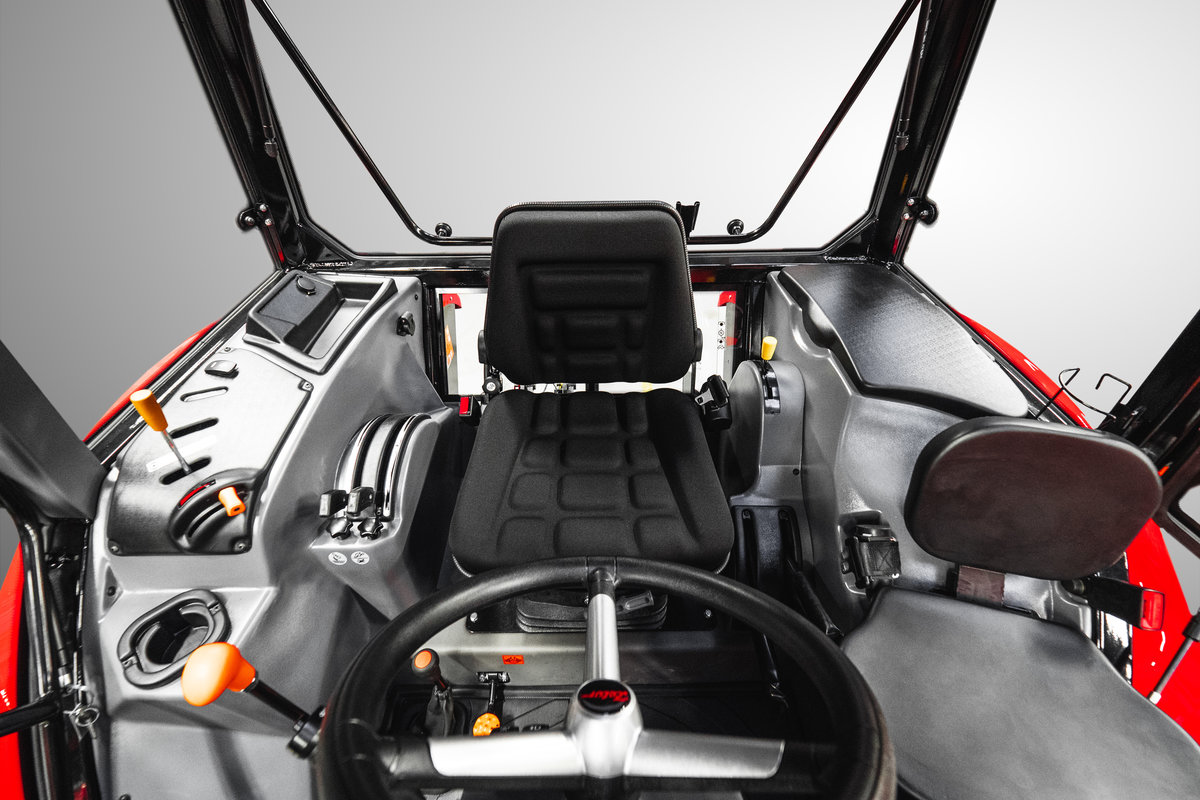

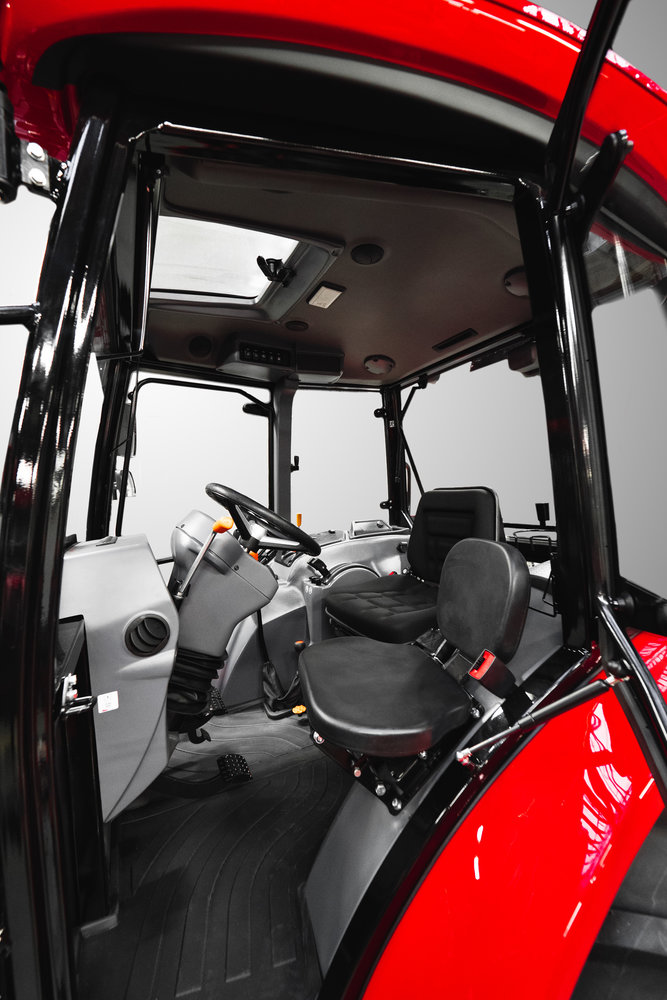

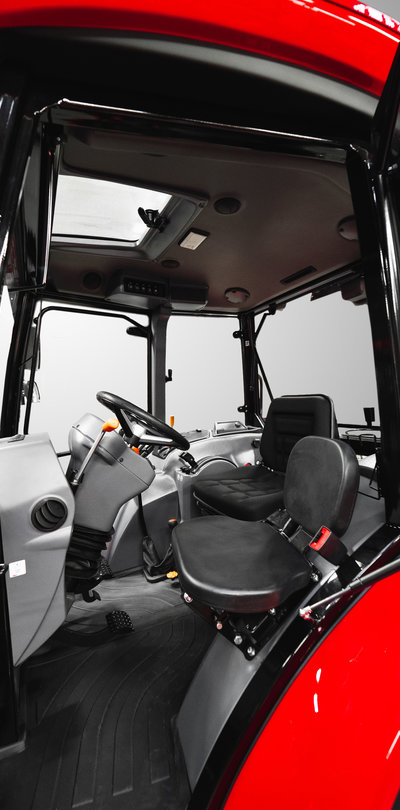

CABIN
Comfortable in view of practical applications. enough space and ergonomic design of controls make the working with tractor easier.
