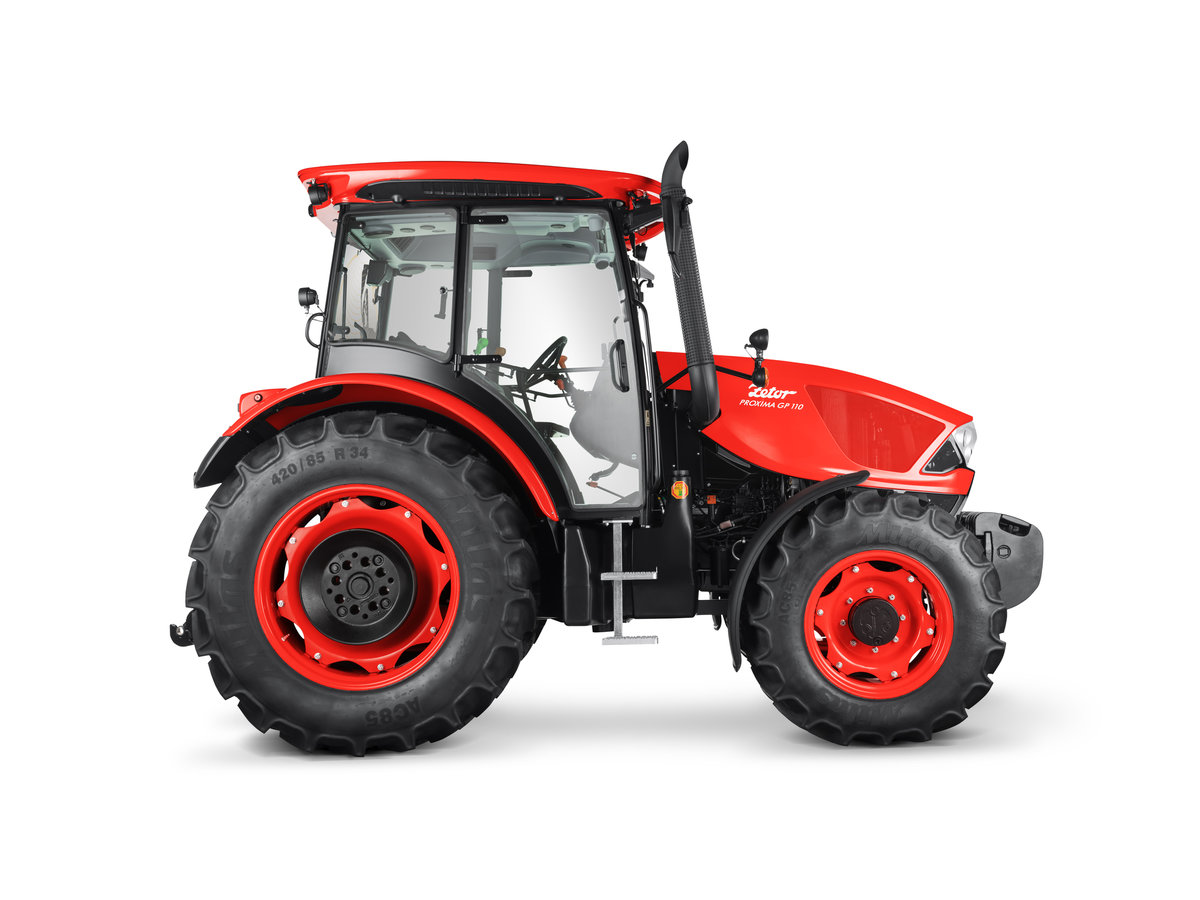

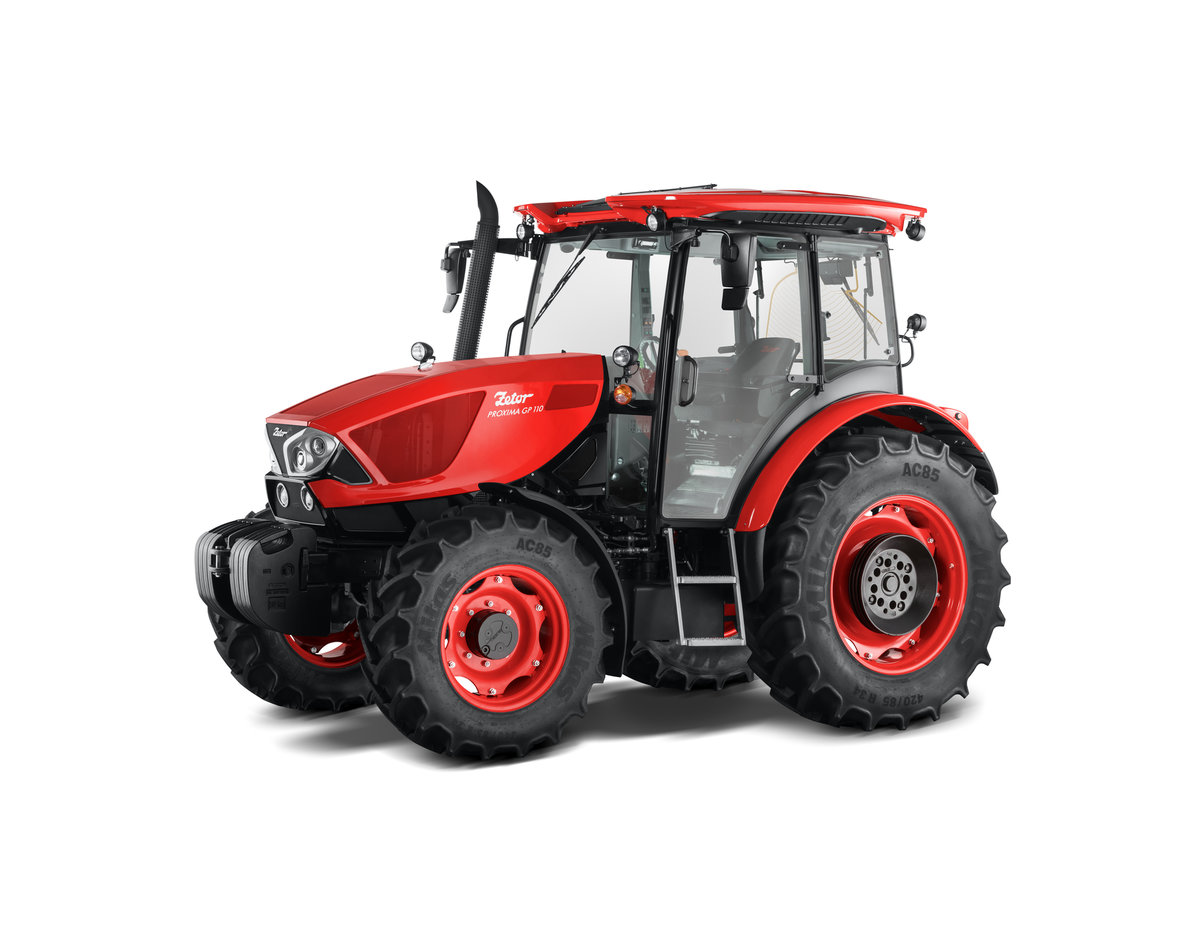

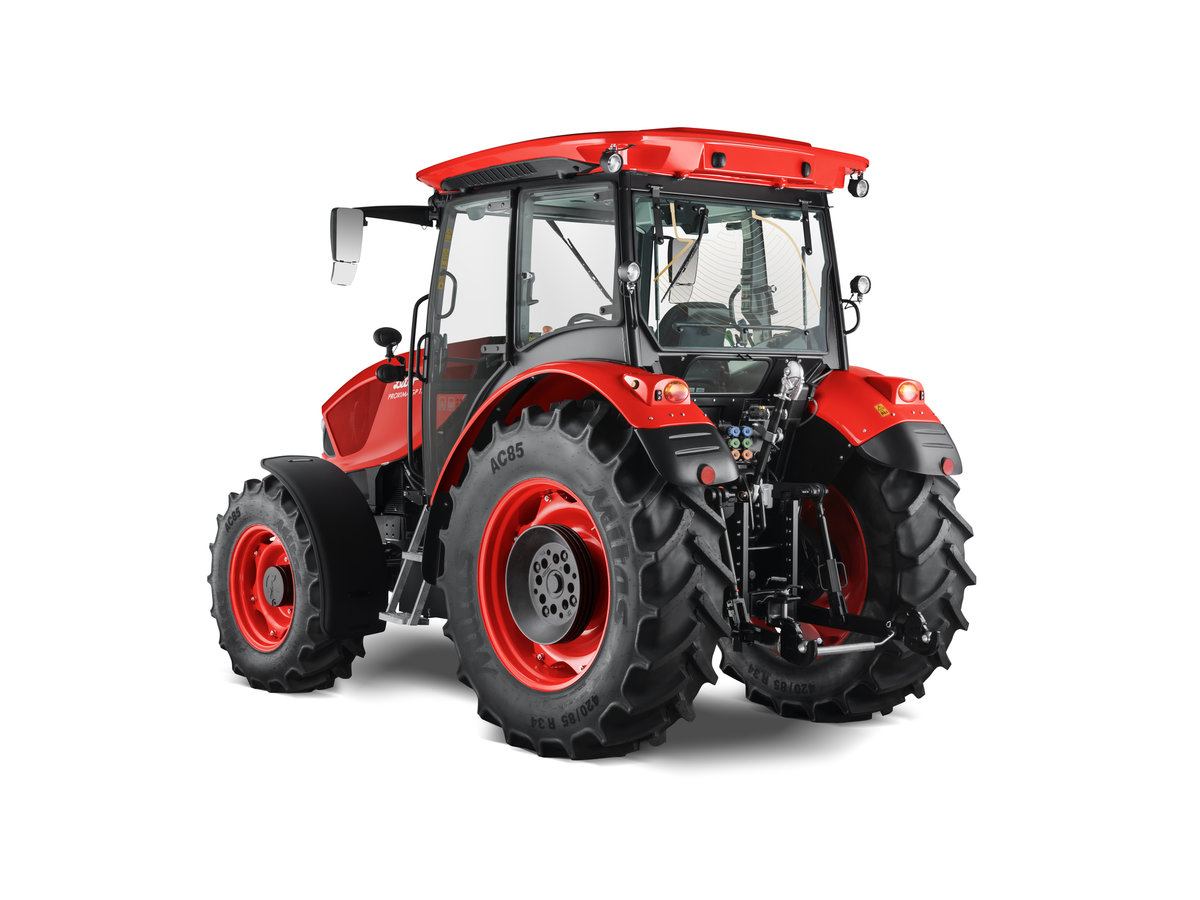

Zetor Proxima

Tractor model range Proxima corresponds with the more than 60 years of Zetor’s know how, in-house tractor factory production and has the maximum power output along with a high reliability even in the toughest conditions.

Leaflet Zetor Proxima (PDF)Print





Technical Parameters

MODEL 70 80  90 100
ENGINE
Model Zetor 7205 Zetor 1105 Zetor 1205 Zetor 1005
Homologated power 2000/25 (kW/HP) 47,6 / 65 56,3 / 76 64,3 / 87 70,4 / 96
Rated speed (rpm) 2200
No. of cylinders 4
Aspiration turbocharged
Bore/Stroke (mm) 105/120
Displacement (cc) 4156
Torque reserve (%) 36 37 35 35
Emissions TIER III
CLUTCH
Type dry, dual-purpose, hydraulic control
Diameter (mm) 310
Lining cerametallic
TRANSMISSION
Type mechanical
Shifting fully synchronised
Gears forward/reverse standard 10/2
Optional synchronised shuttle 12/12, creeper 20/4, overdrive 20/4
Speed (km/h) 2WD cab models (30 kmph) / 4WD cab models (40 and 30 kmph)
PTO SHAFT
Type independent, ground speed PTO standard
Speeds (rpm) 540/1000 or 540/540E
Front PTO 1000
HYDRAULICS
Type mechanical, top link draft sensing
Three point linkage category II
Control position, draft, mixed
Lift capacity (kN) 42
Operating pressure (MPa) 18
Pump capacity (l/min) 50
SCV’s one set of remotes standard
OTHER
Drive system 2WD/4WD
Operator’s station safety cab
Steering hydrostatic
Service brake wet disc brake, hydraulic control
Parking brake mechanical control
Front axle 2WD 2˚ tilting
Front axle 4WD 55˚ turning angle, limited slip front differential, 40 km version braked
Rear axle drop axle design, differential lock (engaged electro-pneumatically)
DIMENSIONS
Lenght (mm) 3875
Width (mm) 1910
Height 2WD/4WD (mm) 2622/2671
Wheel base 2WD/4WD 2321/2308
Ground clearance (mm) 490/402
Standard front tyres 7,5-16/11,2-24
Standard rear tyres 16,9-28
Weight 2WD/4WD (kg) 3130/3630
OPTIONAL
  • adjustable steering wheel
  • adjustable trailer hitch
  • pick-up hitch
  • hydraulic or air trailer brakes
  • block heater
  • A/C
  • front three point hitch
  • front PTO
  • front and rear weights
  • choice of tyre combinations
  • choice of driver seats
  • passenger seat
  • carbon filters
  • hydraulic oil drain
  • flashing beacon
  • heated rear window

Specification

Engine
Zetor Proxima tractors are powered by their own range of Zetor engines, which meet the Tier III emission standards and feature their low operational costs and high reliability.

Transmission
The tractors are equipped with a standard fully synchronized gear box 20+4, which has been improved in the new models to have better ergonomic use of the stick shift and the PTO controls.
Optional:

  • Synchro shuttle gear box 12+12
  • Overdrive 20+4
  • Creeper 10+2

Front Drive Axle
The new model range of Proxima tractors has a new front axle Carraro 20.16 and a new bracket for the front ballasts.

  • These, as a result, allow a 20 % higher loading capacity of the front drive axle

Front Three-point Linkage and PTO (optional)
Proxima tractors can have the optional three-point linkage and PTO (Zuidberg)

  • The new implementation of the optional three-point linkage has a lifting capacity of 2300 kg
  • The front PTO has a wet disc clutch with electro-hydraulic controls
  • Maximum output of the front PTO is 60 kW
  • Tail pieces of the front PTO have 6 or 21 splined shafts as an option

Engine Bonnet
The tractors have a new engine bonnet design which can be opened upwards in a tilting fashion. This manoeuvre allows easier accessibility of the tractor engine during servicing and maintenance. Along with these features, the new engine bonnet brings new lighting and a higher number of headlamps as a part of the standard design as well as a part of the optional features.

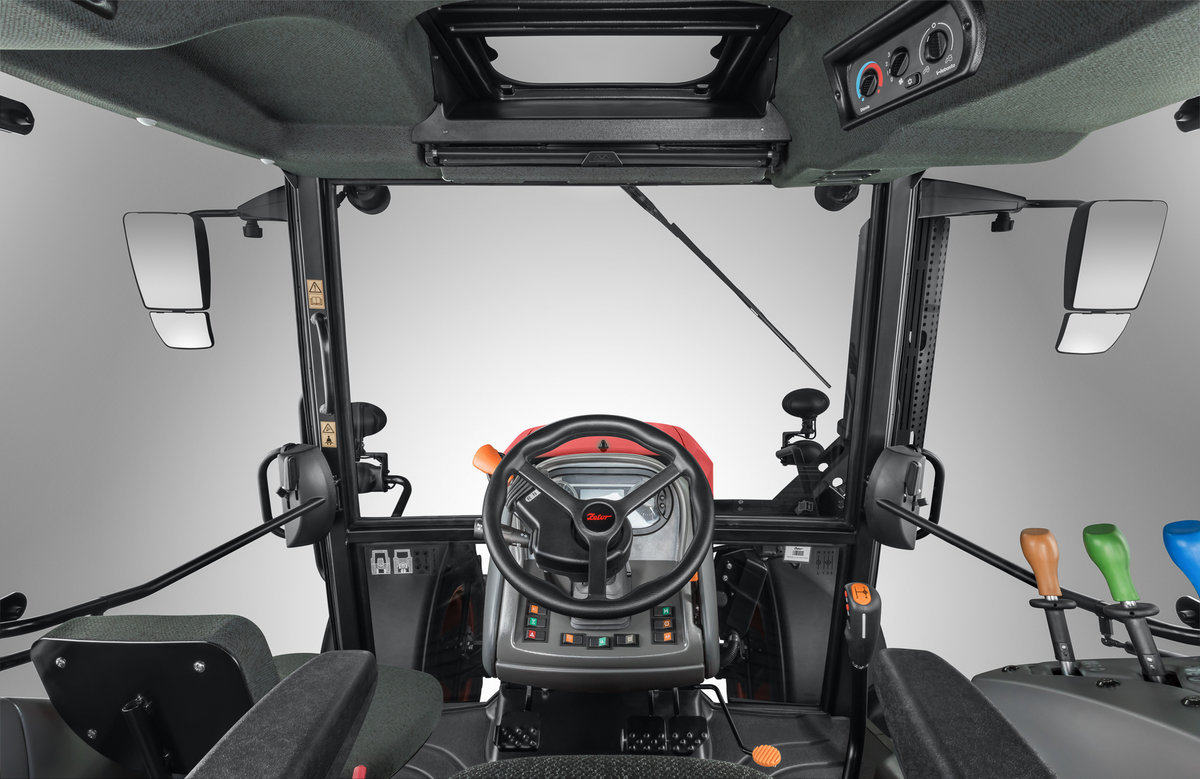

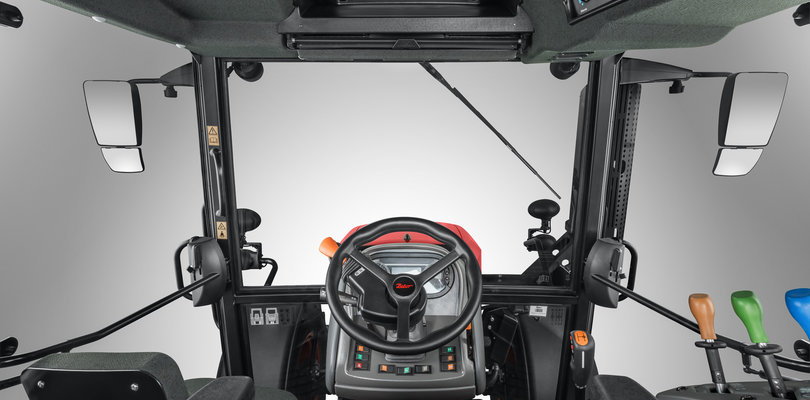

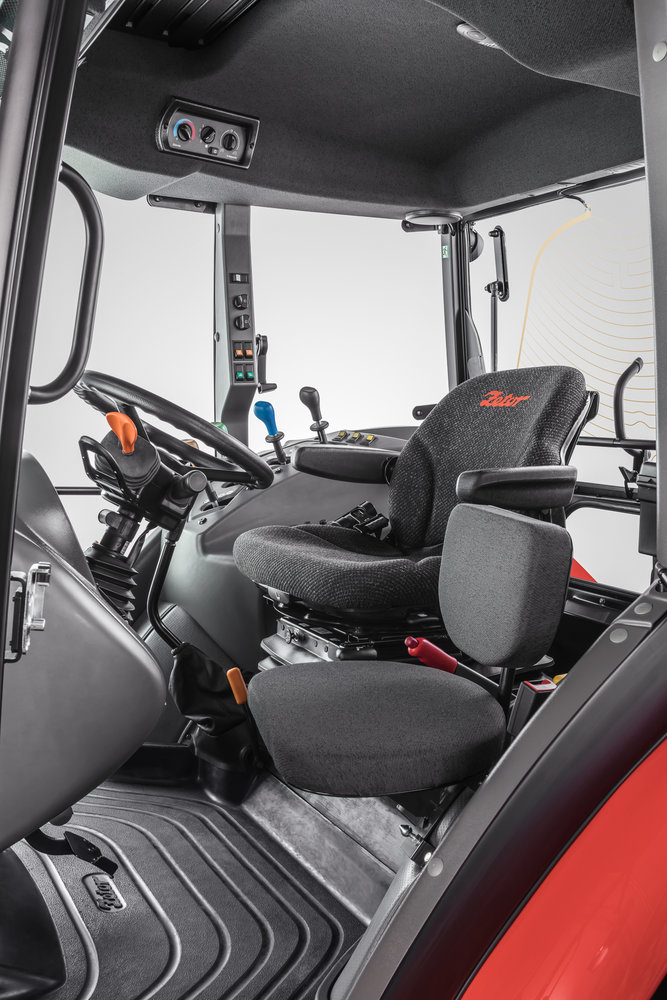

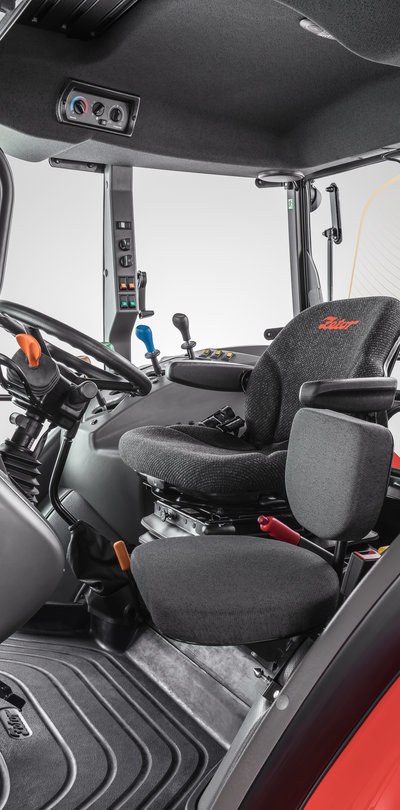

Cab

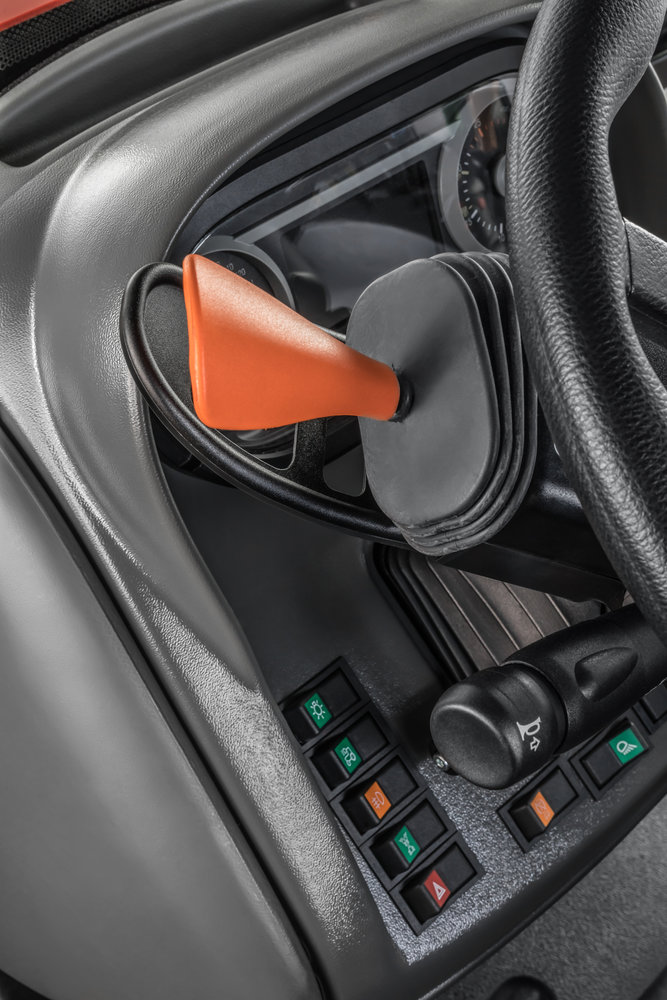

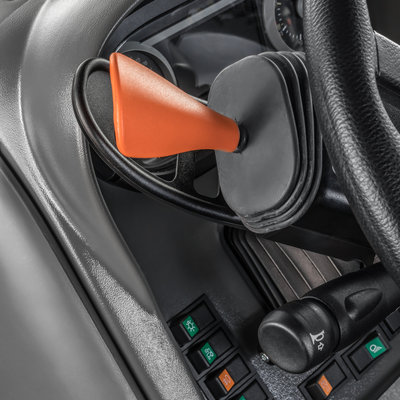

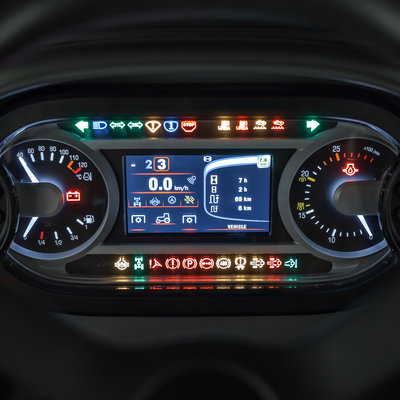

The tractor cab has all of the main controls ergonomically placed with an analogue display that is easily legible. New elements of the cab:

  • New roof
  • Galvanised steps
  • 150 l fuel tank capacity, optional
  • New placement of the battery under the cab

New interior enhancements:

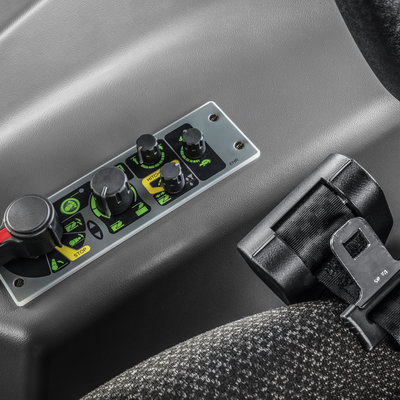

  • The right mudguard has an integrated cover for the hydraulic controls panel with a storage compartment, a 3-plug connector and a lighter
  • New flooring – creates a higher noise reduction

Tractor Chassis
New tyre dimensions:

  • 540/65R34
  • 520/70R34
  • 600/65R34
